Máquinas ópticas de medição por coordenadas
Óptica de alta precisão para tarefas de medição flexíveis
Medição sem contato com opções táteis
As máquinas ópticas de medição por coordenadas (VMM) da série ZEISS Optical impressionam com seus sistemas de câmera de alta resolução, iluminação variável e software sofisticado para resultados de medição rápidos e precisos. A tecnologia de medição óptica sem contato significa que até mesmo peças de trabalho particularmente sensíveis, de paredes finas ou planas, como ópticas, peças moldadas por injeção, folhas, peças perfuradas e dobradas, podem ser medidas com alto grau de precisão. Para ampliar a gama de aplicações, os sistemas da série ZEISS Optical podem ser complementados com sondas adicionais - para medições ópticas e táteis de alta precisão em apenas uma CMM.

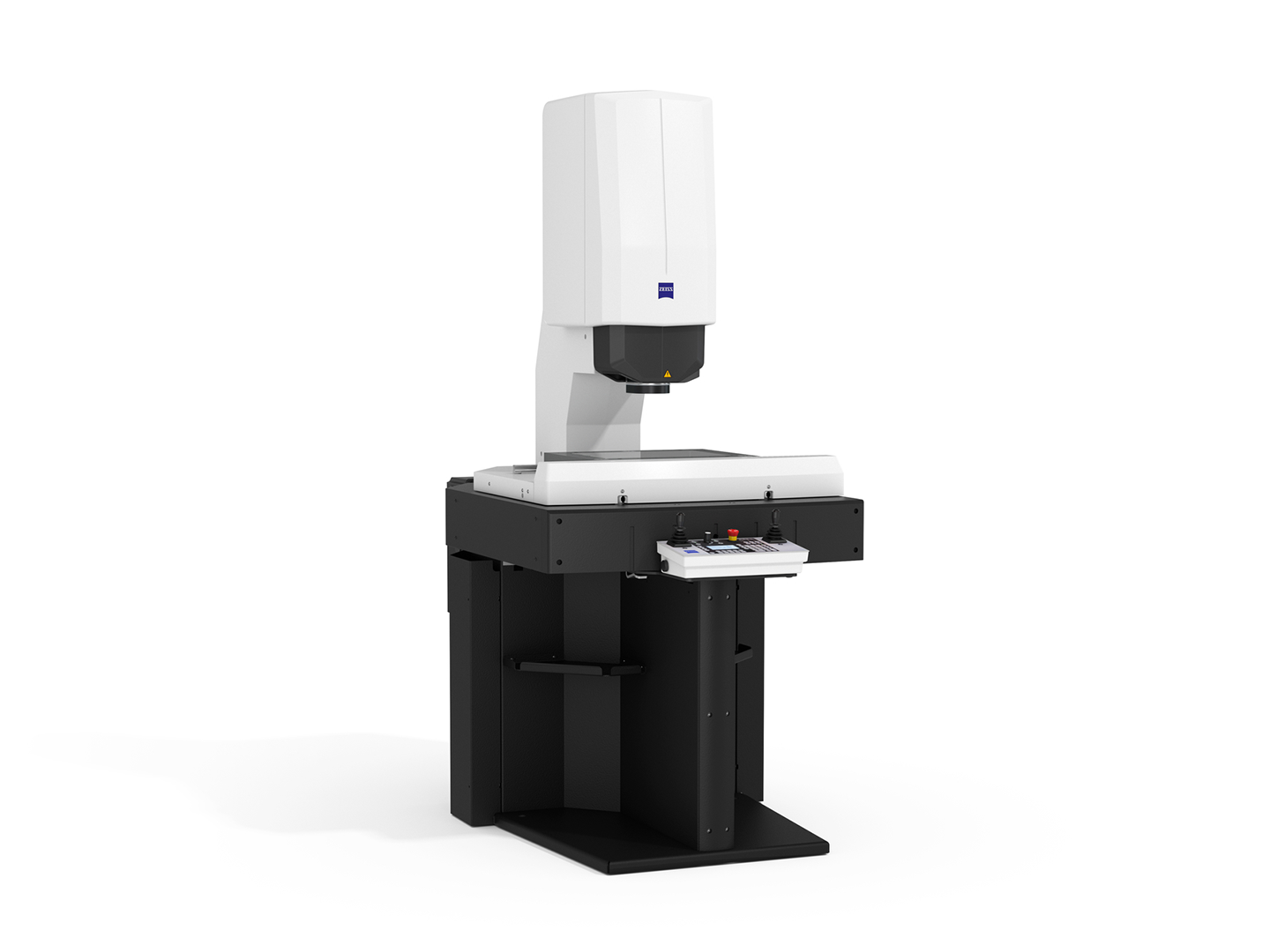

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")

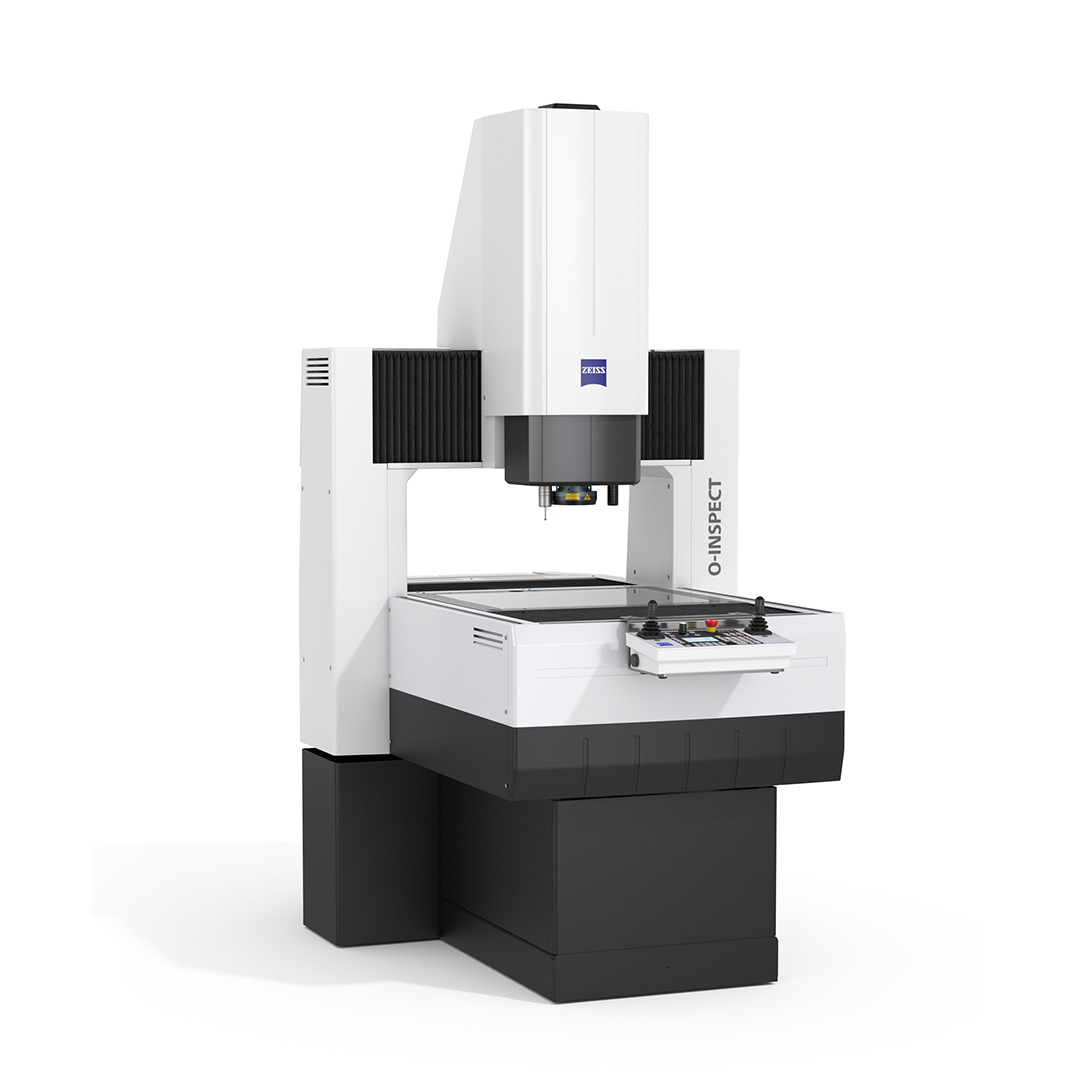

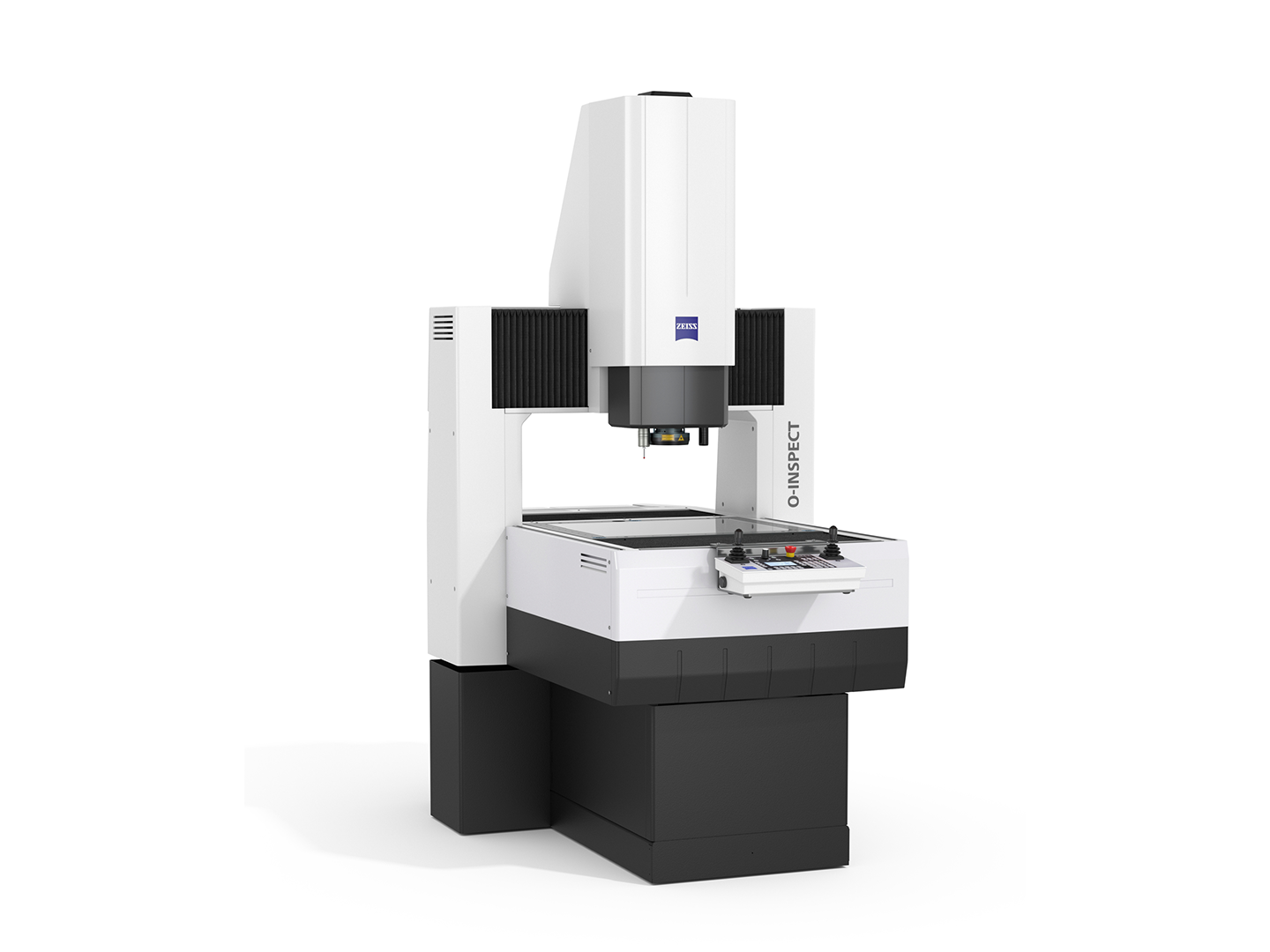

![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")

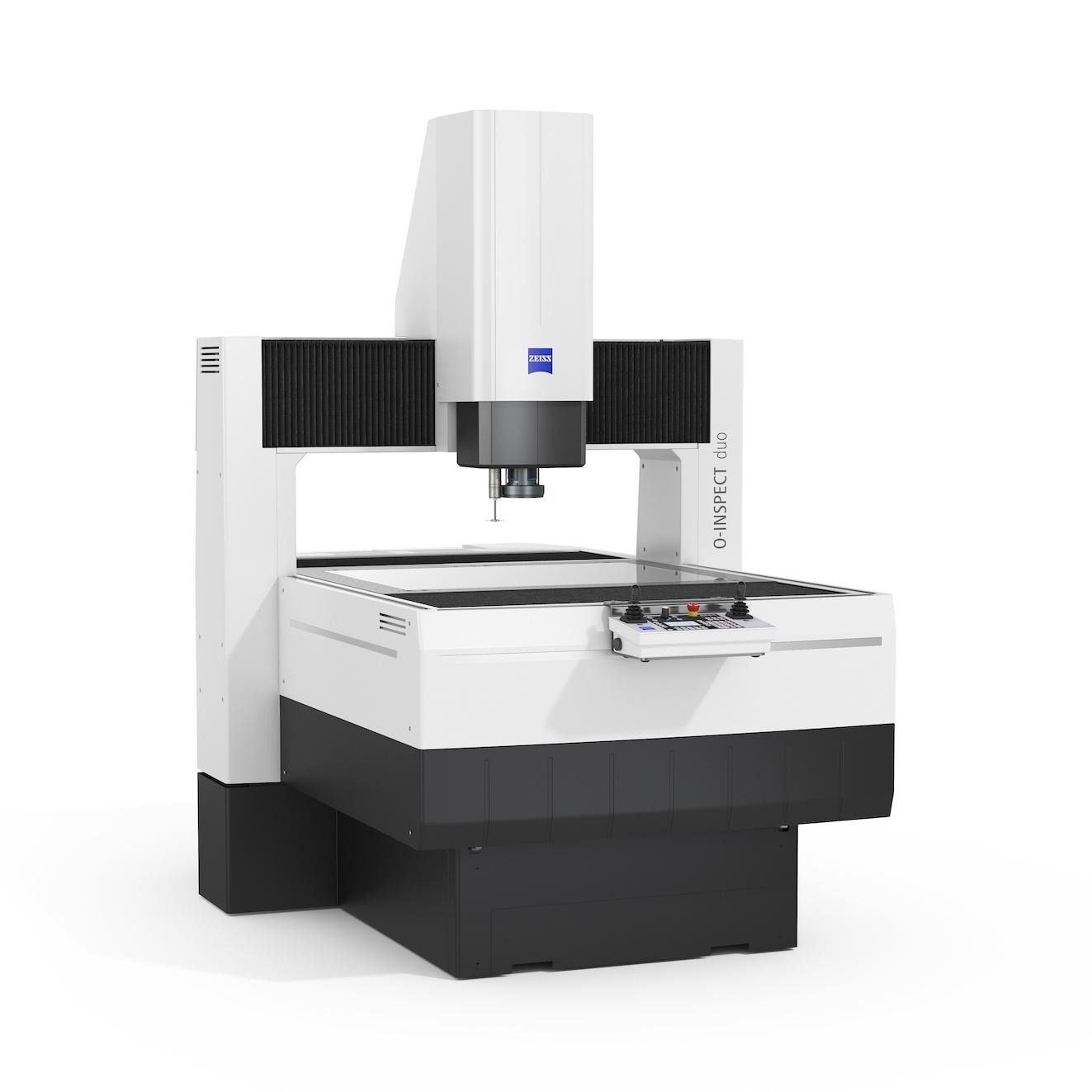

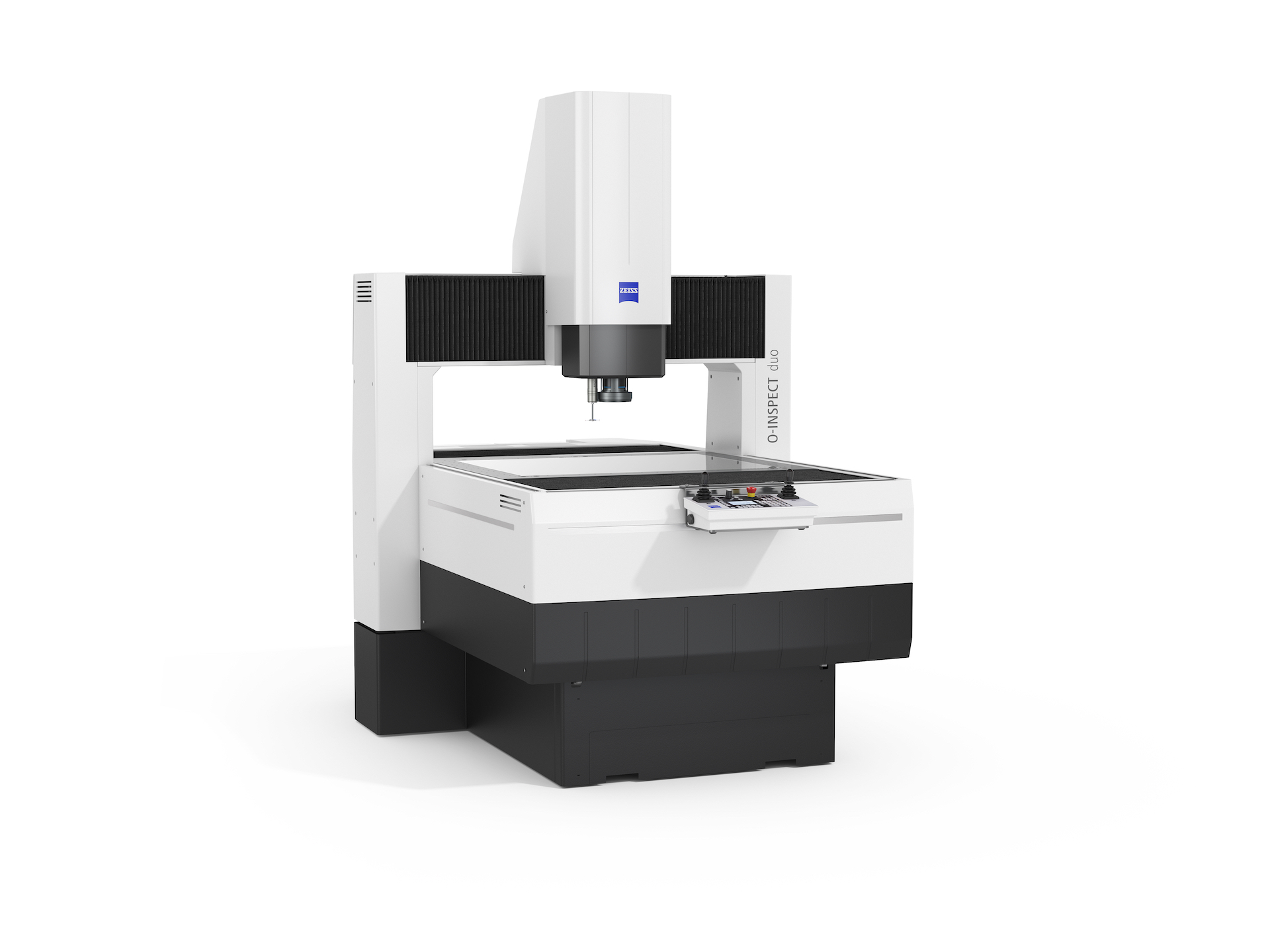

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.960.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original./zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
![Tecnologia multissensor]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.100.75.0,221,1280,1181.file/multisensor.jpg","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.360.270.0,221,1280,1181.file/multisensor.jpg","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.768.576.0,221,1280,1181.file/multisensor.jpg","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1024.768.0,221,1280,1181.file/multisensor.jpg","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg"} "Tecnologia multissensor")
Tecnologia multissensor
Tecnologia de medição óptica e tátil combinada

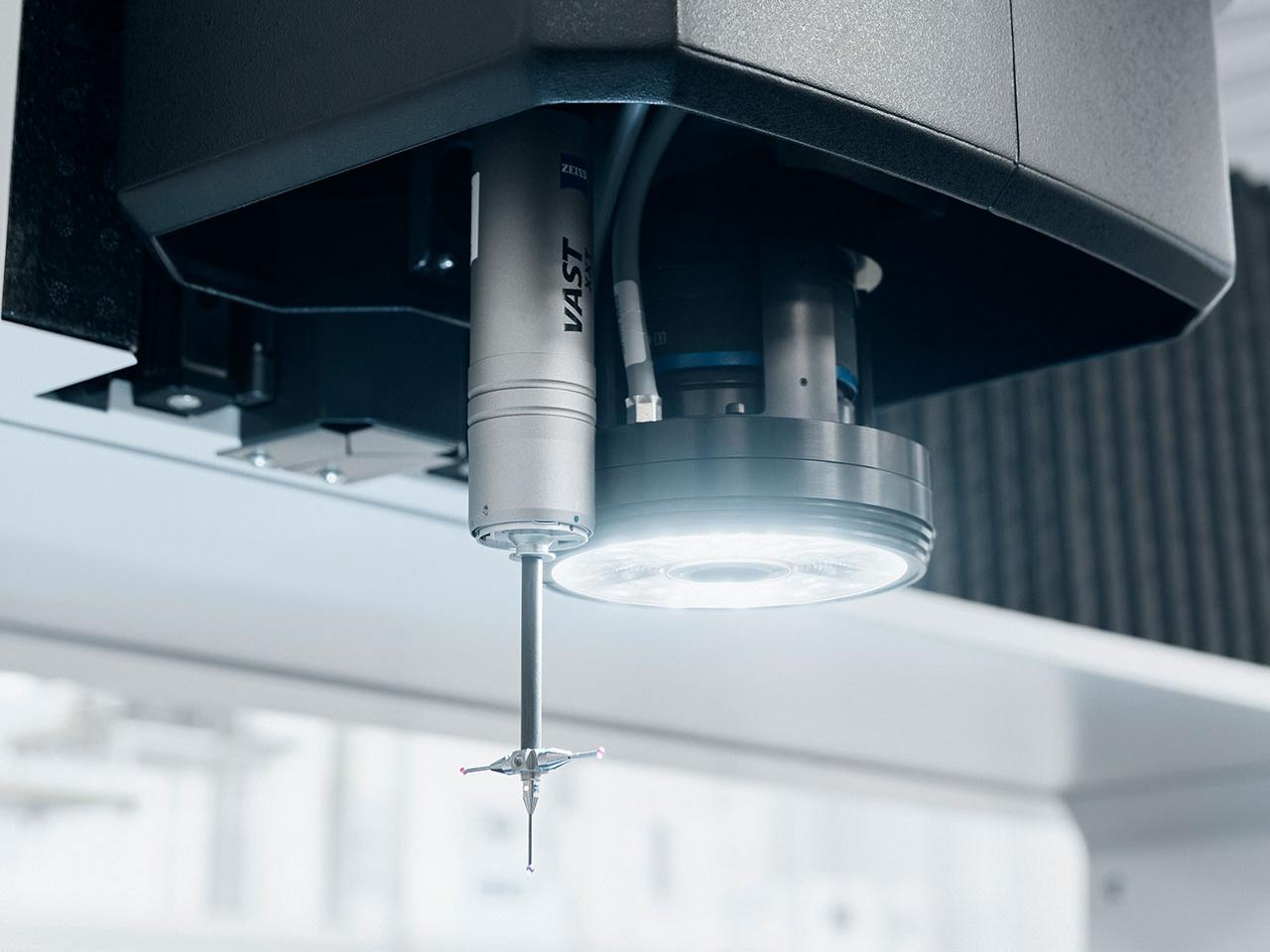

Todos os produtos da série Optical são compatíveis com um sensor tátil e, portanto, permitem a aquisição de dados de medição tátil 3D, além de medições ópticas 2D de alta precisão. Dependendo do modelo, o cabeçote da sonda tátil está disponível como opção ou incluído no pacote padrão.
![Tamanhos diferentes para requisitos diferentes]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.100.56.0,280,1280,1000.file/groessen.jpg","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.360.203.0,280,1280,1000.file/groessen.jpg","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.768.432.0,280,1280,1000.file/groessen.jpg","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1024.576.0,280,1280,1000.file/groessen.jpg","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg"} "Tamanhos diferentes para requisitos diferentes")
Variedade de tamanhos
Tamanhos diferentes para requisitos diferentes

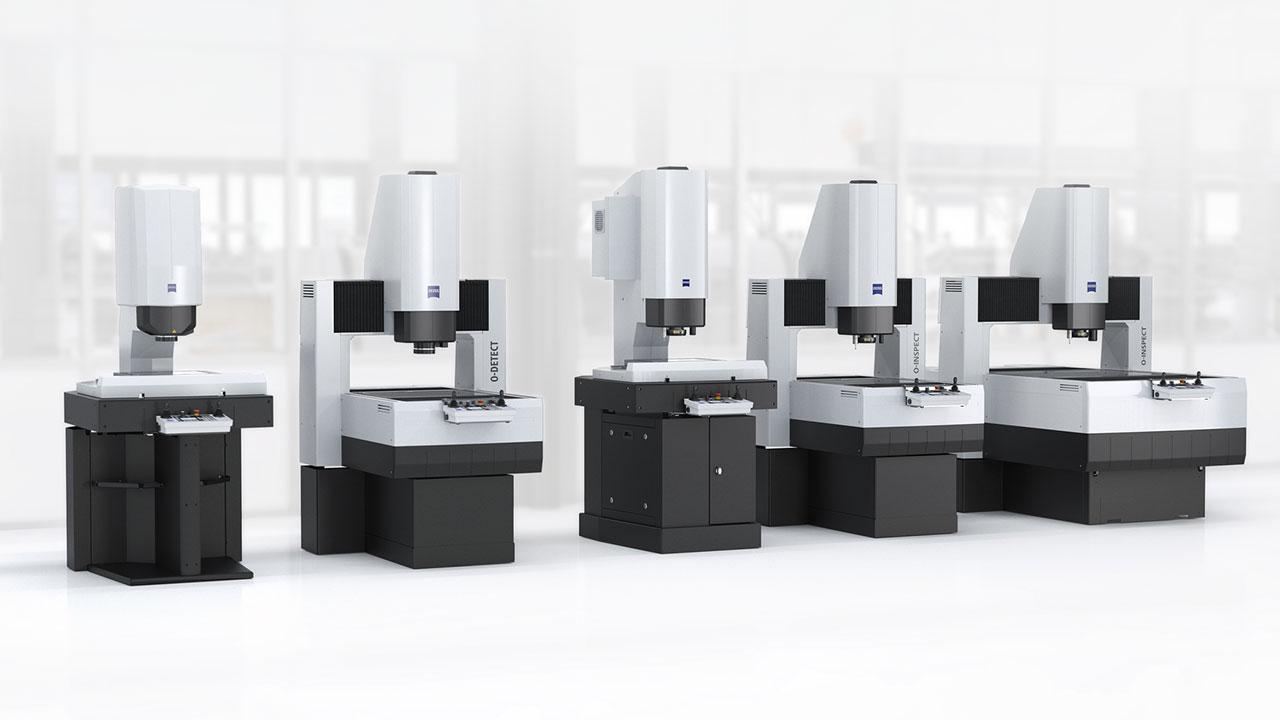

O ZEISS O-DETECT e o ZEISS O-INSPECT estão disponíveis em diferentes tamanhos e são adequados para uma ampla gama de aplicações - desde peças pequenas e delicadas até peças maiores.
Comparação técnica
![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.100.142,6,1219,1083.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.360.142,6,1219,1083.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.768.142,6,1219,1083.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")
|
![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.100.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.360.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.768.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")
|
![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.100.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.360.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.768.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.1024.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.1280.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.com.br/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
|
|
|---|---|---|---|
|
Tipo de produto |
Máquina de medição por coordenadas |
Máquina de medição por coordenadas |
Microscópio e máquina de medição por coordenadas |
|
Faixa de medição em dm |
3/2/2; 5/4/3 |
3/2/2; 5/4/3; 8/6/3 |
8/6/3 |
|
Sonda óptica |
ZEISS INVENTA D1 |
ZEISS Discovery.V12 |
ZEISS Discovery.V12 |
|
Câmera |
5 MP em preto e branco |
Standard 100 ou scout 160 ou scout 240 |
Scout 160 c |
|
Ampliação óptica |
1.0x |
Até 12x |
Até 12x |
|
Outras sondas |
ZEISS XDT (opcional) |
ZEISS VAST XXT |
ZEISS VAST XXT |
|
Visão geral da câmera |
Sim |
Não |
Não |
|
Iluminação |
anel luminoso de LED de 8 segmentos com LEDs azuis e brancos, luz incidente coaxial e luz de fundo, anel luminoso difuso (opcional) |
anel luminoso de LED de 8 segmentos com LEDs vermelho e azul, luz incidente coaxial e luz de fundo |
anel luminoso de LED de 16 segmentos com LEDs brancos, luz incidente coaxial e luz de fundo |
|
Precisão de |
1D: 1.6 μm + L/200 μm |
1D: 1.4 μm + L/250 μm |
1D: 1.5 µm + L/250 µm (8/6/3) |
|
Software |
ZEISS CALYPSO |
ZEISS CALYPSO |
ZEISS CALYPSO |
